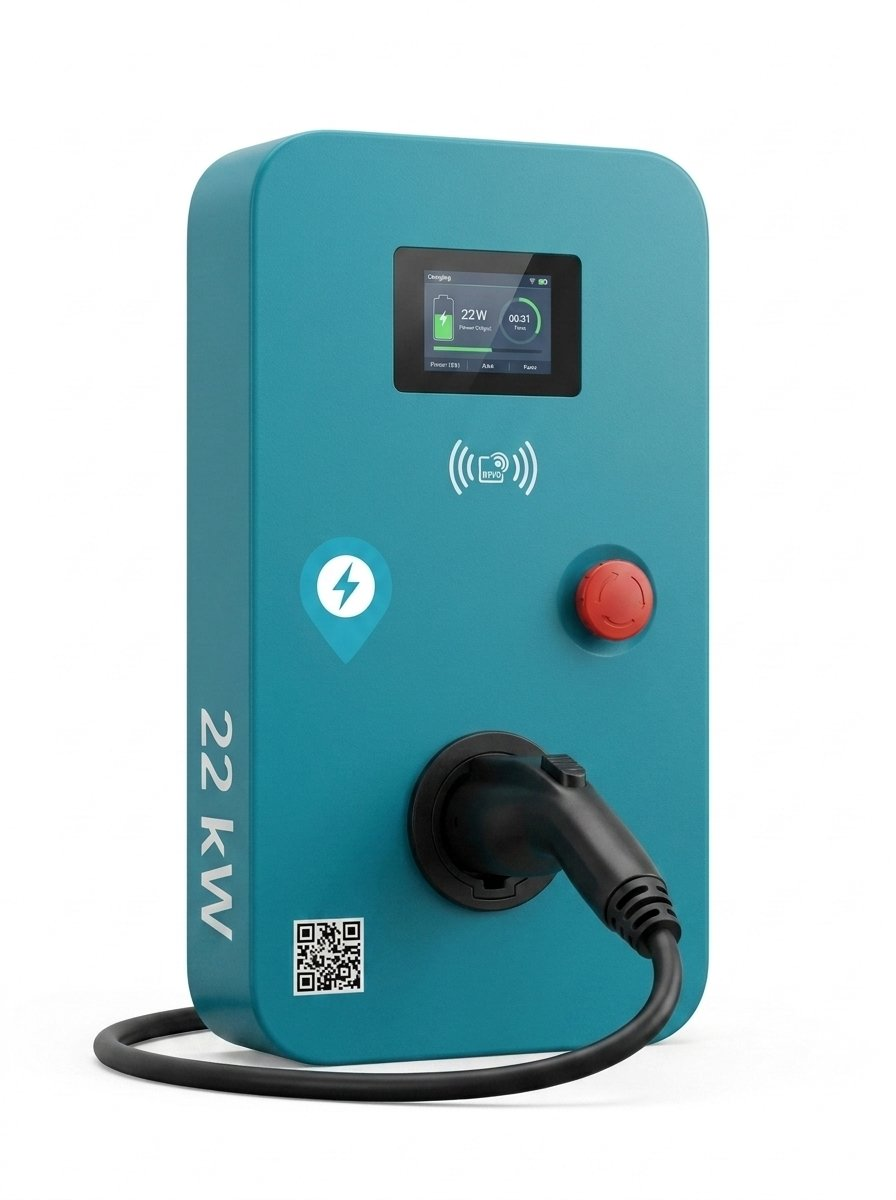

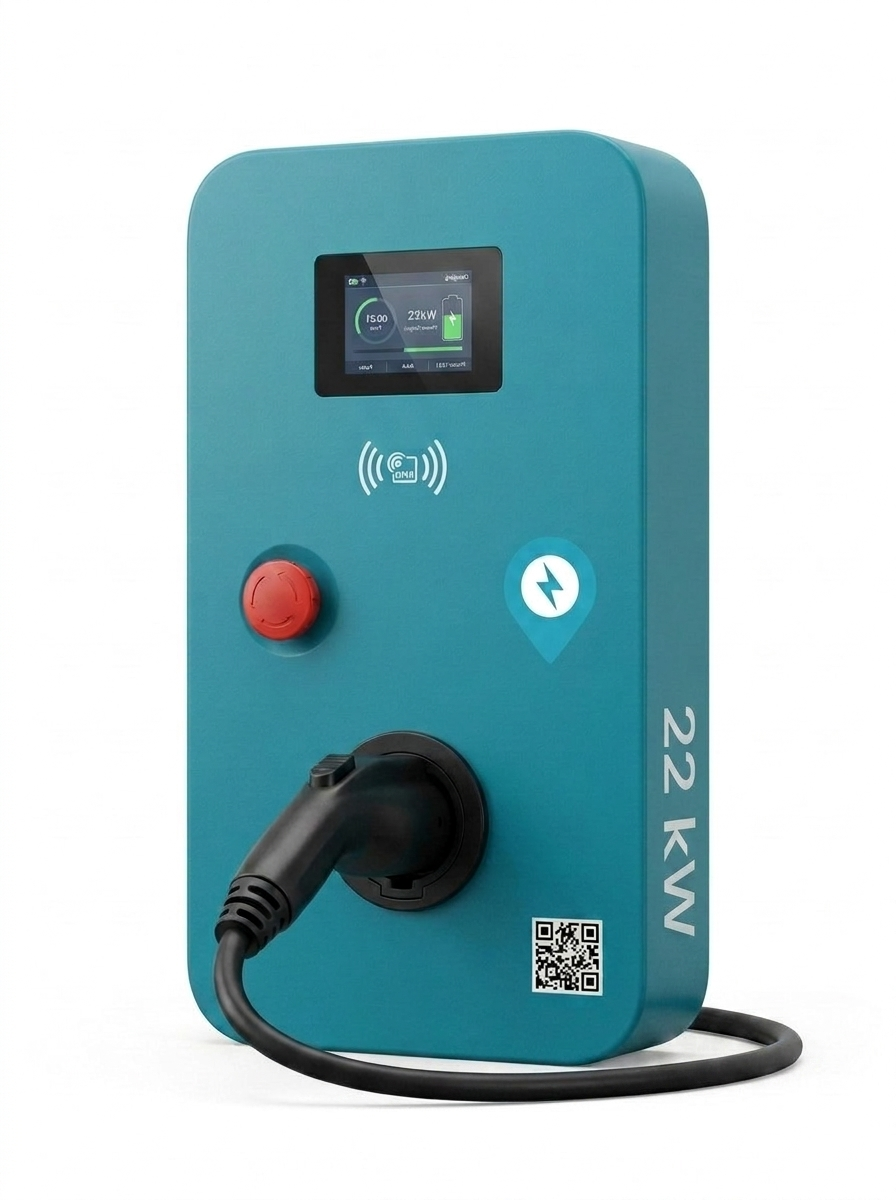

    22 kW AC Charger — front view
    AC Fast Charger · PXL-AC-22

    22 kW AC Charger

    22 kW

    Highest AC output — commercial ready

    The 22 kW AC Charger delivers the highest AC power available under IEC 62196-2 — the fastest AC option for hotels, restaurants, cinemas and dwell-time commercial destinations. IP56 rated with a 3-year warranty and CMS-agnostic OCPP 1.6J connectivity.

    Request a Quote
    Type 2 AC (IEC 62196-2)
    OCPP 1.6J
    OTA firmware updates
    QR · Plug & Charge · RFID
    IP56 all-weather enclosure
    Type B earth leakage & anti-theft

    Technical Specifications

    ModelPXL-AC-22
    Rated Output22 kW
    InputThree-Phase 400 V (±10%) · 32 A
    ConnectorType 2 · 5 m cable
    Dimensions400 × 250 × 125 mm · 6 kg
    ProtectionIP56
    InteroperabilityOCPP 1.6J
    AuthenticationQR · Plug & Charge · RFID
    CertificationARAI Certified
    Warranty3 years

    Ideal For

    Restaurants & cafés
    Cinemas & malls
    Hotels & resorts
    Airport parking
