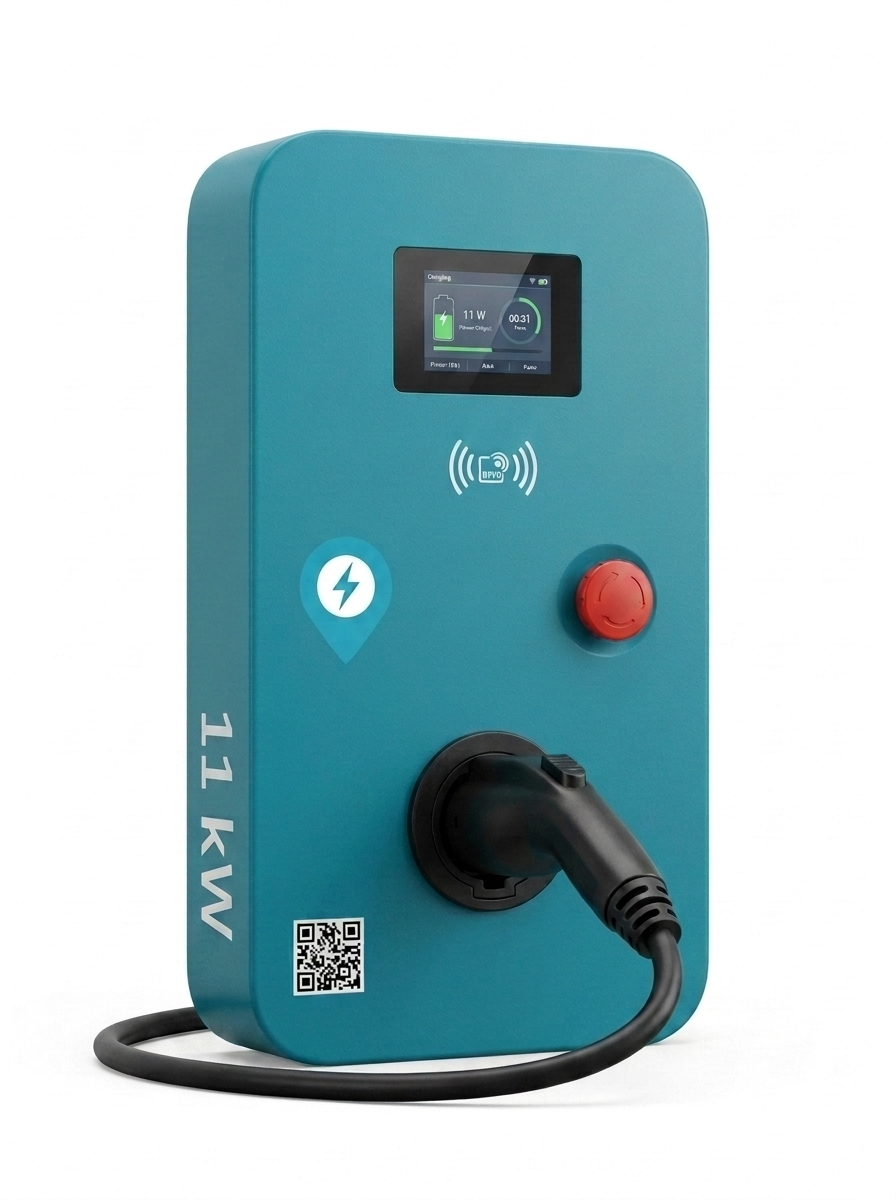

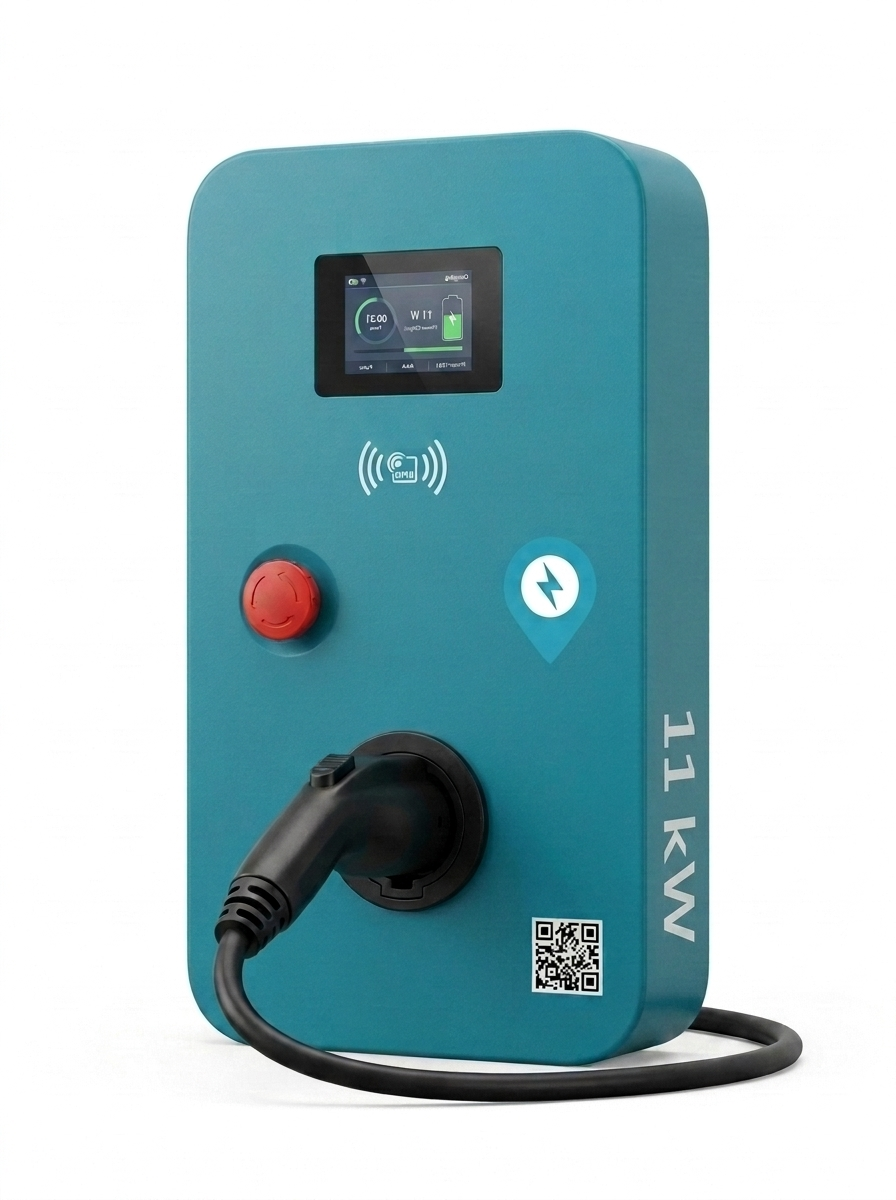

    11 kW AC Charger — front view
    AC Charger · PXL-AC-11

    11 kW AC Charger

    11 kW

    Three-phase workplace & public AC

    The 11 kW AC Charger brings three-phase power to workplace, mall, and public destination charging. Dynamic load balancing lets multiple units share a single shared circuit safely, while OCPP 1.6J and full OTA support keep the fleet current with zero site visits.

    Request a Quote
    Type 2 AC (IEC 62196-2)
    OCPP 1.6J
    OTA firmware updates
    QR · Plug & Charge · RFID
    IP56 all-weather enclosure
    Type B earth leakage & anti-theft

    Technical Specifications

    ModelPXL-AC-11
    Rated Output11 kW
    InputThree-Phase 400 V (±10%) · 16 A
    ConnectorType 2 · 5 m cable
    Dimensions400 × 250 × 125 mm · 6 kg
    ProtectionIP56
    Dynamic Load BalancerYes
    InteroperabilityOCPP 1.6J
    AuthenticationQR · Plug & Charge · RFID
    CertificationARAI Certified
    Warranty2 years

    Ideal For

    Workplaces & IT parks
    Malls & retail
    Public destination charging
    Hospitality
    Previous7.4 kW AC Charger
    Next22 kW AC Charger

    Need a Custom Configuration?

    Our team will help you choose the right charger for your site — free consultation, no obligation.
