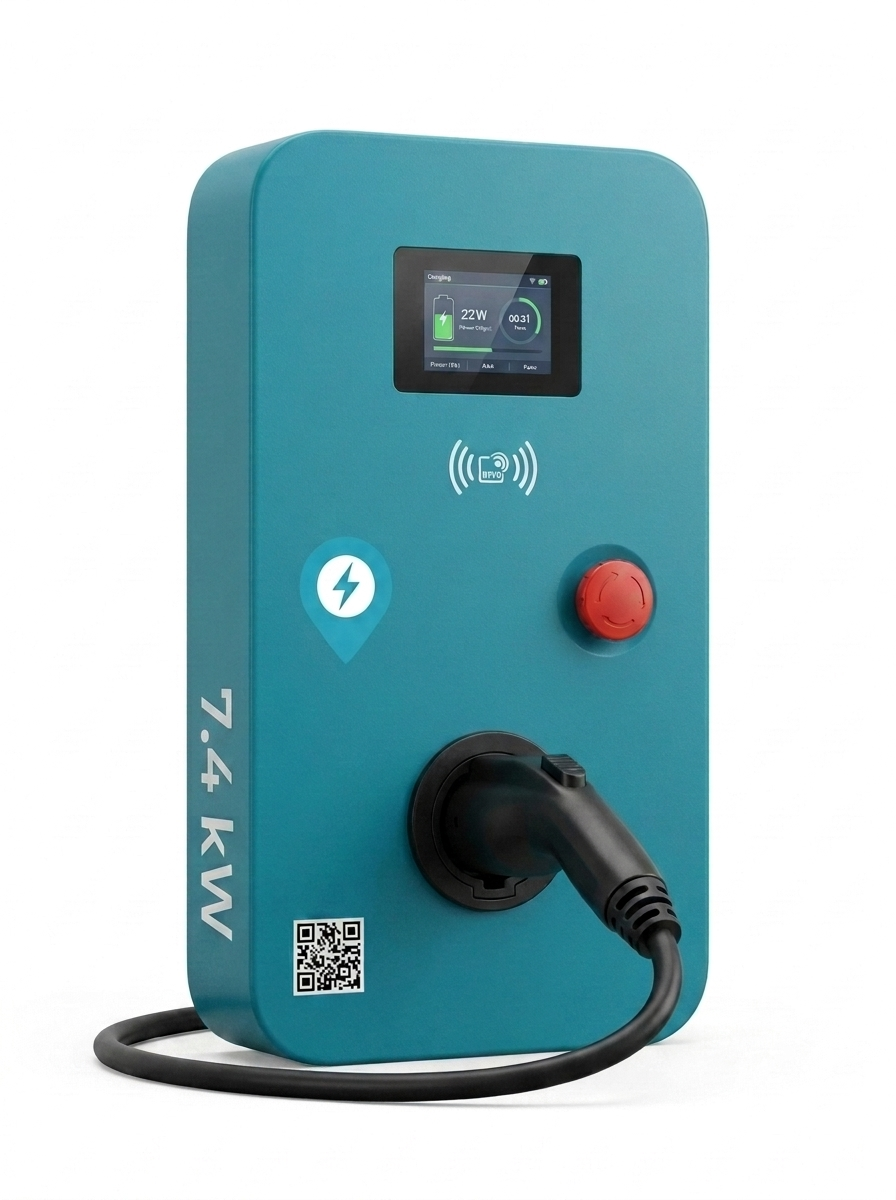

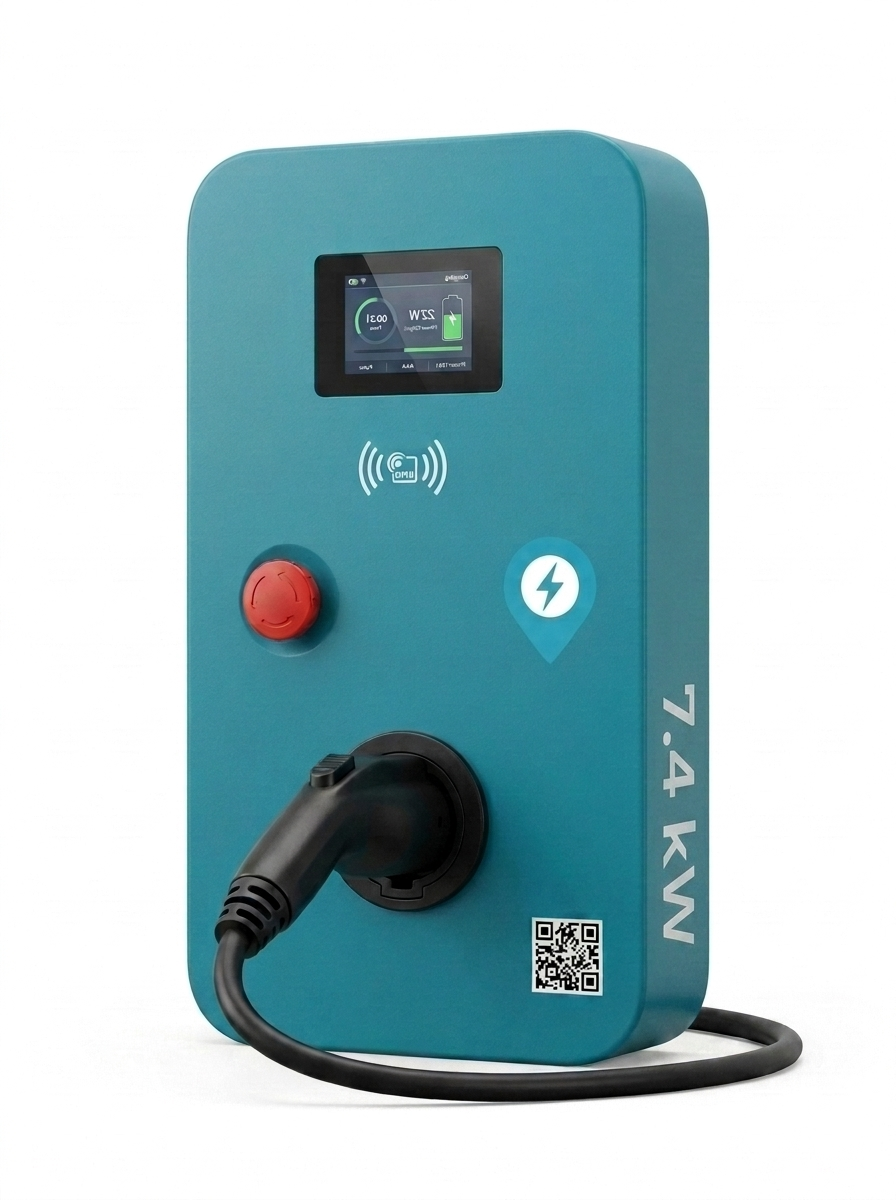

    7.4 kW AC Charger — front view
    AC Charger · PXL-AC-74

    7.4 kW AC Charger

    7.4 kW

    Fast AC for home & business

    The 7.4 kW AC Charger is the sweet spot for premium homes and small business locations — full overnight charging at maximum single-phase output, IP56 weatherproof, and CMS-ready. Wall or stand mount, 5 m cable, and 3-year warranty. OCPP 1.6J connects it to any back-end.

    Request a Quote
    Type 2 AC (IEC 62196-2)
    OCPP 1.6J
    OTA firmware updates
    QR · Plug & Charge · RFID
    IP56 all-weather enclosure
    Type B earth leakage & anti-theft

    Technical Specifications

    ModelPXL-AC-74
    Rated Output7.4 kW
    InputSingle-Phase 220 V AC (±10%) · 32 A
    ConnectorType 2 · 5 m cable
    Dimensions400 × 250 × 125 mm · 5 kg
    ProtectionIP56
    InteroperabilityOCPP 1.6J
    AuthenticationQR · Plug & Charge · RFID
    CertificationARAI Certified
    Warranty3 years

    Ideal For

    Premium homes
    Boutique hotels
    Small offices
    Villas
