DC Fast Charger · PXL-DC-120

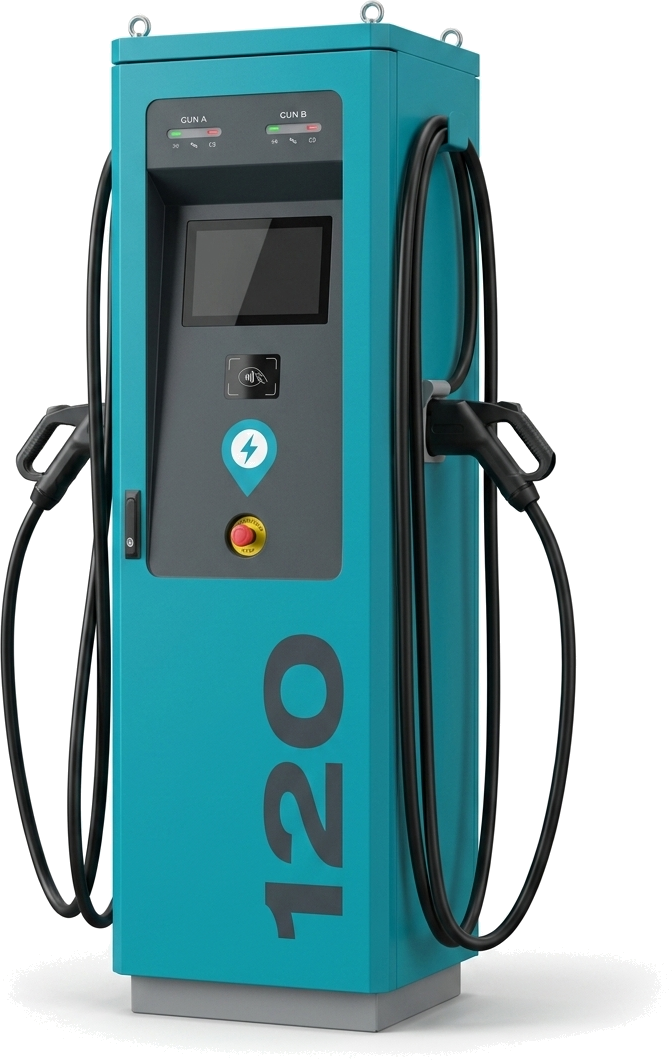

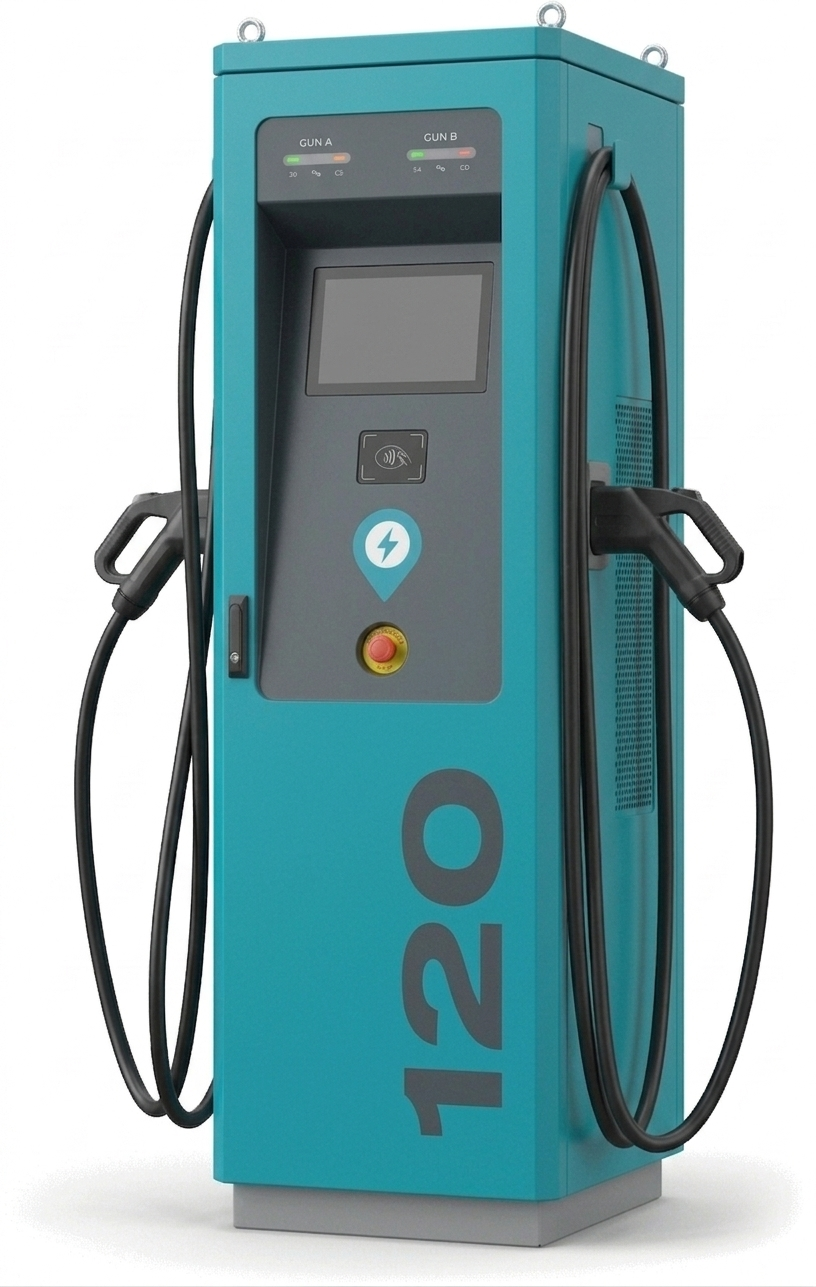

120 kW DC Fast Charger
120 kW
Highway-corridor rapid
The 120 kW DC Fast Charger is built for highway corridors and high-footfall city hubs where turnover matters. Dual-gun CCS2 with 250 A max current, wide 200 – 1000 V window, and rugged IP54 build for India's NH network.
Dual-gun CCS2 with dynamic power sharing
200 – 1000 V DC wide output window
OCPP 1.6J — CMS-agnostic
RFID · Mobile App · QR authentication
3G / 4G / Wi-Fi / Ethernet
IP54 · -30 °C to +75 °C operation
Technical Specifications
ModelPXL-DC-120
Rated Output120 kW
Outputs2 × CCS2 (dynamic power sharing)
Output Voltage200 – 1000 V DC
Max Output Current250 A
InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
Dimensions1662.5 × 823 × 520 mm
ProtectionIP54 · -30 °C to +75 °C
CommunicationOCPP 1.6J
Connectivity3G · 4G · Wi-Fi · Ethernet
StandardsIS 17017 / IEC 61851 · ARAI Certified
Ideal For
Highway corridors
Fleet depots
Premium charging hubs
Interstate rest stops
