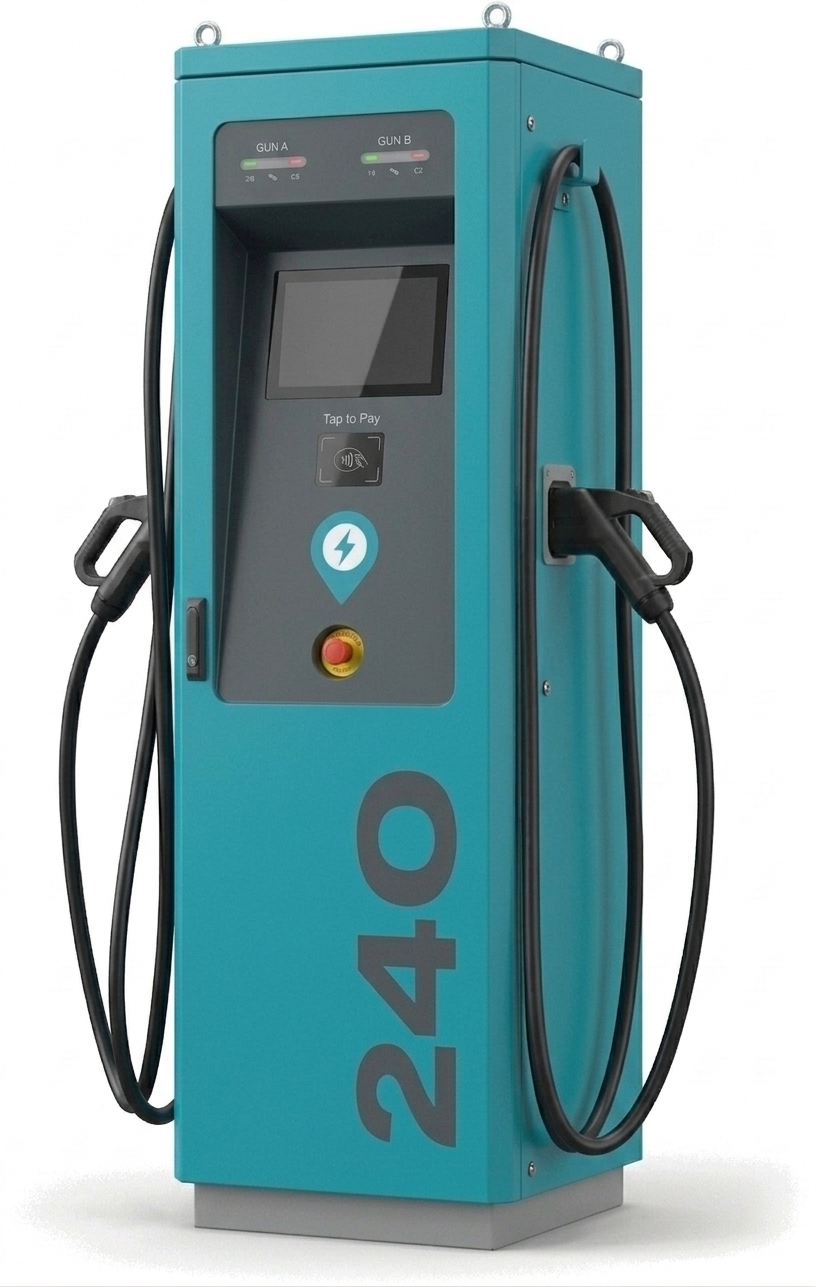

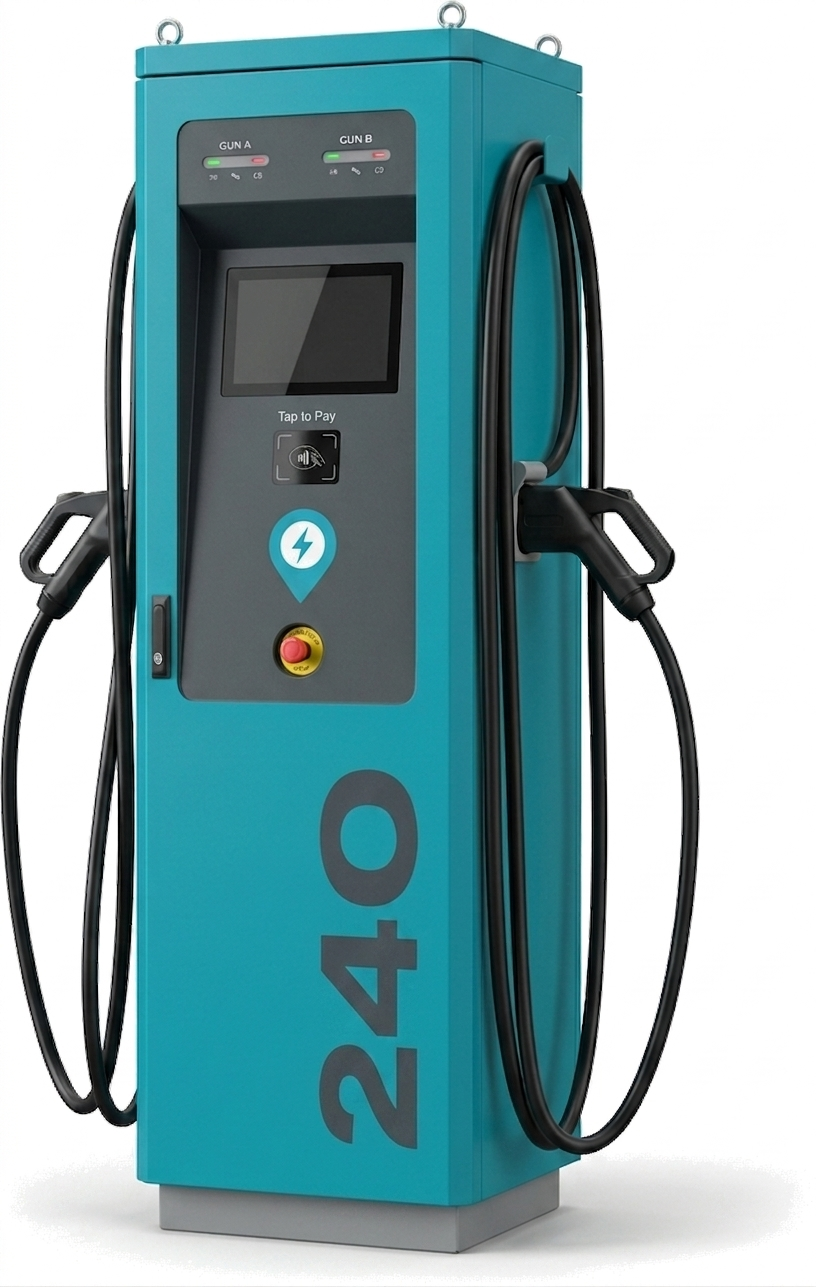

DC Ultra-Fast Charger · PXL-DC-240
240 kW DC Fast Charger
240 kW
Ultra-fast highway rapid
The 240 kW DC Ultra-Fast Charger powers India's expressway network — dual-gun CCS2 capable of adding 200 km of range in under 10 minutes, ready for buses and heavy commercial vehicles. BESS-compatible for grid-independent operation on remote highway sites.
Dual-gun CCS2 with dynamic power sharing
200 – 1000 V DC wide output window
OCPP 1.6J — CMS-agnostic
RFID · Mobile App · QR authentication
3G / 4G / Wi-Fi / Ethernet
IP54 · -30 °C to +75 °C operation
Technical Specifications
ModelPXL-DC-240
Rated Output240 kW
Outputs2 × CCS2 (dynamic power sharing)
Output Voltage200 – 1000 V DC
InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
ProtectionIP54 · -30 °C to +75 °C
CoolingLiquid-cooled cables · active thermal management
CommunicationOCPP 1.6J
Connectivity3G · 4G · Wi-Fi · Ethernet
StandardsIS 17017 / IEC 61851 · ARAI Certified
Ideal For
National highways
Expressway plazas
Bus & HCV depots
Metro transit hubs
